Catamaran Electric drives catamaran - main image

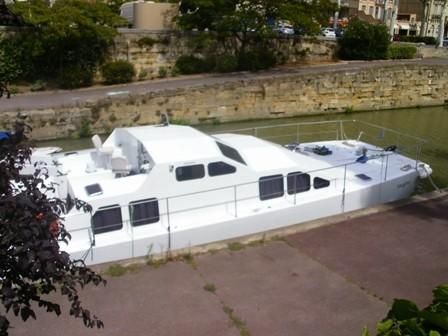

2010 Catamaran Electric drives catamaran

location icon Ipswich, Suffolk
Year 2010
Length 40 ft / 12.19 m
Price
£74,990

Motor Catamaran for sale. Tenant 40 electric motor catamaran for sale. This craft built by first owner, started 2008 and launched 2010 (two owners) to cruise the french canals including two trips to Mediterranean.. Vendor advises materials used to build craft have vat invoices.There is no rig for sails, but it is capable of having  a rig fitted if required..Epoxy foam core sandwich construction. Electric motors D135 supplied by Lynch  to shaft drives with flexible couplings, replacing original diesel engines.. Galley, fitted washing machine.Two double cabins Large saloon. Internal helm has been removed, but components are stored on craft. Internal helm deck with wheel removed to maximise accomodation.External wheel/helm deck with wheel, throttles and instruments at sitting position..Panda diesel generator.below deck in acoustic housing.  Large external sun deck aft. large fore deck for loungers etc.The electric engines provide low cost cruising with huge range. Would also make a fabulous live aboard. New deck anti-slip finish early August.Economic cruising speed 6 knts each motor equivelant to 46 hp..Charging of battery bank at sea by Panda generator giving huge range for just a couple of litres of generator fuel per hour! Battery also charged on shore power when in marina. Each motor has seperate cooling blowers. Solar panels and wind generator could give a sensible additional top up charge. Virtually silent  running, virtually no cost! Motivated vendor.



Specifications

Year Built 2010
Category Power
Length Overall 39'7 ft / 12.06 m
Beam 16'2 ft / 4.94 m
Max Draft 2'10 ft / 0.85 m
Cabins 4
Cabin Headroom 7 ft / 2.13 m
Electrical System 12 V
Double Berths 2
Construction Fiberglass
Drive Type Direct
Engines 2
Total Engine Power 90.70 hp
Fuel Tanks 1
Fuel Tank Cap. 120 L
Water Tanks 2
Water Tank Cap. 650 L
Holding Tanks 1
Holding Tank Cap. 90 L
Tax Status Paid

Engine 1 Specifications

Make: Lynch
Model: LEM-200-D135 48v
Drive Type: Direct
Fuel: Electric
Engine Power: 46hp
Type: Electric
Propeller Type: 3 Blade
Year: 2010
Engine Location: Port

Engine 2 Specifications

Make: Lynch
Model: LEM-200-D135 48v
Drive Type: Direct
Fuel: Electric
Engine Power: 46hp
Type: Electric
Propeller Type: 3 Blade
Year: 2010
Engine Location: Starboard
Accommodations
  • Accomodation
  • Comprising 2 double cabins with Queen size beds, memory foam mattresses. Hanging wardrobes and shelves in each cabin.Forward cabin starboard has a large wardrobe with double bed.
  • Aft cabin port hull has double bed.
  • Aft cabin starboard hull used as office-can be changed back to double berth cabin.
  • Saloon with two double sofas can convert to double berth.
  • Large galley. Formica surfaces with fiddles. Four large cupboards with sliding doors.Pressurised water system. Hot water provided by tank with immersion element. Cold water supply via filters. Stainless steel sink with mixer tap.
  • Wallas diesel ceramic hob unit
  • Wallas Nautic 40 D warm air heating ducted to saloon, heads and aft cabin
  • Halogen oven and grill.
  • Frigoboat refridgerator with freezer compartment.
  • Head, wash room with fitted washing machine and tumble dryer., wash hand basin Marine head, holding tank but not connected. Electric bilge pump to shower in forward area of port hull.
Engine
  • Electric 48v LEM-200-D135  by LMC Ltd x 2 by Lynch.
  • Shaft drives flexible couplings,
  • The batteries powering both electric drives are kept charged by a generator that uses 2 litres of fuel when the craft is underway..fantastic economy.
  • It is thought that the addition of large modern solar panels and wind charger would add greatly to the already phenomenal low cost passage making..a truly green type craft.
  • Virtually silent running.
Electrics
  • Fischer Panda 48 Generator 13kw 227 a..charging of batteries at 2 litres per hour giving huge range economically.
  • 4 Rolls total 1500 ah deep cycle batteries connected in series for 48 volt service to drive motors.
  • Leisure battery 110 ah generator starter battery.
  • Leisure 110ah windlass battery with seperate charger.
  • Victron inverter charger, 3500w inverter 230v-48v charger.
  • 3500w isolation transformer.
  • Shore power or inverter for washing machine, tumble drier, vacumn cleaner,electric kettle and windlass (inverter)
  • 230v socket outlets throughout craft.
Navigation
  • Depth, Compass, log and wind speed and direction NASA
  • Autohelm, unconnected.
  • Rudder angle reference
  • Joystick steering socket.
  • Garmin radar.
Electrics
  • Panda AGT-HD 13000 -48v with silent exhaust system.
Hull, Deck, Safety, Canvas
  • Anchor self launch Delta with 60m chain-10mm
  • Lofrans 1200w reversing windlass contol at foredeck.
  • Self stowing bow roller.
  • Warps  and fenders.
  • Guard wires and stanchions. 800mm high. MOB life sling.Horseshoe lifebouy with lamp. 5 no. firextinguishers and a fire blanket.
  • Radar reflector.
  • 3no. electric bilge pumps.
  • New anti slip grey finish to decks.
  • Telescopic swim ladder.
  • Boat hook and two deck brushes.
  • CE dispensation certificate.
